Did Carl Sagan play a role in the famous Arecibo message transmitted toward the Hercules Cluster in 1974? I’ve always assumed so, given Sagan’s connection with Frank Drake, who was then at Cornell University, where Sagan spent most of his career. But opinion seems to vary. Artist/scientist Joe Davis, who now has affiliations with both MIT’s Laboratory of Molecular Structure and Harvard Medical School, noted in an email this morning that Sagan’s widow, Ann Druyan, supports the connection, but according to Davis, Drake himself denied Sagan’s role in the composition or transmission of the message.
I mention all this because of Tuesday’s post on the simulated SETI signal being sent via ESO’s Mars ExoMars Trace Gas Orbiter, as a kind of work of art in its own right as well as a test case in building public involvement in the decoding of an unusual message. The idea of doing that irresistibly recalled Joe Davis because in 1988 Davis performed his own act of scientific art involving SETI, one that involved the Arecibo message and raised the question of whether any recipients would recognize it, much less decode it.

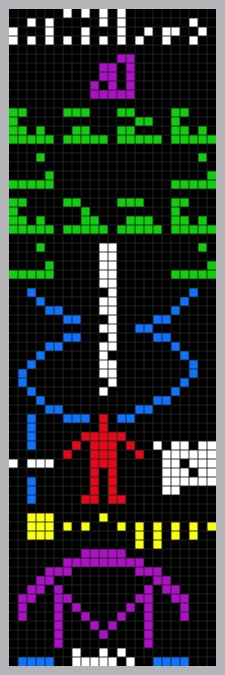

Image: A color-coded version of the Arecibo message highlighting its separate parts. The binary transmission itself carried no color information. Credit: Arne Nordmann / Wikimedia Commons. CC BY-SA 3.0.
The project, called “A Message in Many Bottles,” was set up at MIT’s Hayden Library in 1988. Davis used 1679 ‘Boston round’ 16 ounce glass bottles arrayed in a set of partitioned racks that were displayed in stacks. This is remarkably clever stuff: Each of 18 aisles in the library contained racks of bottles mounted, as Davis told me, 23 across. Empty bottles served as 0s in this digital message, while bottles filled with water represented the 1s. The whole thing reproduced the 1974 Arecibo message.
Now remember, this is MIT. You would think that if there is any place where a population of scientists, academics and students might puzzle out an enigmatic artifact like this, it would be here. Davis puts it this way in his email:
Hayden Library is MIT’s science library and contains all of the information needed to decode the message, all information the message refers to, and supposedly, better-than-average terrestrial intelligence. To the best of my knowledge, nobody decoded it. Instead, there were arguments…about whether or not the racks of bottles constituted works of art.
Image: An evidently baffled student contemplates the “Message in Many Bottles.” Credit: Joe Davis.
In 1997, a year after Sagan’s death, Davis reinstalled the display at MIT’s then new biology facility (Building 68), dedicating the work to the memory of Sagan. A short article on the matter in Nature (27 March 1997) noted the project as an homage to Sagan that accurately reproduced the Arecibo signal, going on to note:
Philip Sharp, chairman of MIT’s biology department, describes the exhibit as a “fitting tribute” to Sagan’s work. “It brings the abstraction of a radar message into an accessible, physical form,” says Sharp. He says he sees “numerous benefits” in having an artist who approaches issues from an unorthodox perspective working alongside more formally trained scientists.
Labeled as a tribute to Sagan and explained so that viewers could decode the message, “A Message in Many Bottles” served as an effective exhibit inhabiting the muzzy borderland where science meets art and creative minds translate research into shapes and forms that interrogate the meaning of our experiments. For that matter, was the Arecibo message itself not a kind of art, given that with a target 25,000 light years away, there was no conceivable way to see it as an actual communication?
Back in 2009 Joe Davis wrote “RuBisCo Stars” and the Riddle of Life for Centauri Dreams, presenting his own work at Arecibo, which wound up, on the 35th anniversary of the Arecibo message, in a new message based on molecular biology that was sent to three nearby stars. How he did this using, remarkably, an analog audio file on his iPhone interfacing with Arecibo’s technology is explained in the second part of his 2009 post, “RuBisCo Stars”: Part II. These two posts are, as everything involving Joe Davis’ work continues to be, invigorating and startlingly thought-provoking.
Image: At Arecibo, Joe Davis ponders transmission options as he holds the possible answer. Credit: Ashley Clark.
In fact, Davis notes in part II, in the midst of explaining to Arecibo’s then interim director Michael Nolan what his project is about, that “projects concerned with the search for extraterrestrial intelligence are really more about a search for ourselves; that they make us look much more intensely at ourselves than we look away into space and that nobody seems to see that part of it.” Nor could the myriad well-trained minds who encountered the Arecibo message in “A Message in Many Bottles” decode its meaning.
Science is so often about asking the right question. What are we staring at right now that we are not seeing? Are we asking the right questions about SETI?
The preliminary program for the Interstellar Research Group’s 8th Interstellar Symposium in Montreal is now available. For those of you heading to the event, I want to add that the early bird registration period for attending at a discount is May 31. Registration fees go up after that date. Registering at the conference hotel can be handled here. Registration before the 31st is recommended to get a room within the block reserved for IRG.
Now and again scientists think of interesting ways to use our space missions in contexts for which they were not designed. I’m thinking, for example, of the ‘pale blue dot’ image snapped by Voyager 1 in 1990, an iconic view that forcibly speaks to the immensity of the universe and the smallness of the place we inhabit. Voyager’s cameras, we might recall, were added only after a debate among mission designers, some of whom argued that the mission could proceed without any cameras aboard.
Fortunately, the camera advocates won, with results we’re all familiar with. Now we have a project out of The SETI Institute that would use a European Space Agency mission in a novel way, one that also challenges our thinking about our place in the cosmos. Daniela de Paulis, who serves as artist in residence at the institute, is working across numerous disciplines with researchers involved in SETI and astronautics to create A Sign in Space, the creation of an ‘extraterrestrial’ message. This is not a message beamed to another star, but a message beamed back at us.
The plan is this: On May 24, 2023, tomorrow as I write this on the US east coast, ESA’s ExoMars Trace Gas Orbiter, in orbit around Mars, will transmit an encoded message to Earth that will act as a simulation of a message from another civilization. The message will be detected by the Allen Telescope Array (ATA) in California, the Green Bank Telescope (GBT) in West Virginia and the Medicina Radio Astronomical Observatory in Italy. The content of the message is known only to de Paulis and her team, and the public will be in on the attempt to decode and interpret it. The message will be sent at 1900 UTC on May 24 and discussed in a live stream event beginning at 1815 UTC online.
The signal should reach Earth some 16 minutes after transmission, hence the timing of the live stream event. This should be an enjoyable online gathering. According to The SETI Institute, the live stream, hosted by Franck Marchis and the Green Bank Observatory’s Victoria Catlett, will feature key team members – scientists, engineers, artists and more – and will include control rooms from the ATA, the GBT, and Medicina.
Daniela de Paulis points to the purpose of the project:
“Throughout history, humanity has searched for meaning in powerful and transformative phenomena. Receiving a message from an extraterrestrial civilization would be a profoundly transformational experience for all humankind. A Sign in Space offers the unprecedented opportunity to tangibly rehearse and prepare for this scenario through global collaboration, fostering an open-ended search for meaning across all cultures and disciplines.”
The data are to be stored in collaboration with Breakthrough Listen’s Open Data Archive and the storage network Filecoin, the idea being to make the signal available to anyone who wants to have a crack at decoding it. A Sign in Space offers a Discord server for discussion of the project, while findings may be submitted through a dedicated form on the project’s website. For a number of weeks after the signal transmission, the A Sign in Space team will host Zoom discussions on the issues involved in reception of an extraterrestrial signal, with the events listed here.
I was saddened to learn of the recent death of James Early, author of a key paper on interstellar sail missions and a frequent attendee at IRG events (or TVIW, as the organization was known when I first met him). Jim passed away on April 28 in Saint George, UT at the age of 80, a well-liked figure in the interstellar community and a fine scientist. I wish I had known him better. I ran into him for the first time in a slightly awkward way, which Jim, ever the gentleman, quickly made light of.
What happened was this. In 2012 I was researching damage that an interstellar sail mission might experience in the boost phase of its journey. Somewhere I had seen what I recall as a color image in a magazine (OMNI?) showing a battered, torn sail docked in what looked to be a repair facility at the end of an interstellar crossing. It raised the obvious question: If we did get a sail up to, say, 5% of the speed of light, wouldn’t even the tiniest particles along the way create significant damage to the structure? The image was telling and to this day I haven’t found its source.
I think of the image as ‘lightsail on arrival,’ and if this triggers a memory with anyone, please let me know. Anyway, although our paths crossed at the first 100 Year Starship symposium in Orlando in 2011, I didn’t know Jim’s work and didn’t realize he had analyzed the sail damage question extensively. When I wrote about the matter on Centauri Dreams a year later, he popped up in the comments:
I presented a very low mass solution to the dust problem at the 100 Year Starship Symposium in a talk titled “Dust Grain Damage to Interstellar Vehicles and Lightsails”. An earlier published paper contains most of the important physics: Early, J.T., and London, R.A., “Dust Grain Damage to Interstellar Laser-Pushed Lightsail”, Journal of Spacecraft and Rockets, July-Aug. 2000, Vol. 37, No. 4, pp. 526-531.
I was caught by surprise by the reference. How did I miss it? Researching my 2005 Centauri Dreams book, I had been through the literature backwards and forwards, and JSR was one of the journals I combed for deep space papers. Later, at a TVIW meeting in Oak Ridge, we talked, had dinner and Jim kidded me about my research methods. As I saw it, his paper was a major contribution, and I should have known about it. Yesterday I asked Andrew Higgins (McGill University) about the paper and he had this to say in an email:
Jim Early’s paper (written with Richard London in 1999) on dust grain impacts addressed one of the bogeys of interstellar flight: The dust grain impact problem when traveling at relativistic speeds. Their analysis showed—counterintuitively—that the damage caused by a dust grain on an interstellar lightsail actually decreases as the sail exceeds a few percent of the speed of light. While the grain turns into an expanding fireball of plasma as it passes through the sail, the amount of thermal radiation deposited on the sail decreases as the fireball is receding more quickly from the sail. This was a welcome result suggesting sails might survive the interstellar transit, and their study remains the seminal work on dust grain interactions with thin structures at relativistic speeds.
Image: Dinner after the first day’s last plenary session in Oak Ridge in 2014. That’s Jim Benford at far left, then James Early, Sandy Montgomery and Michael Lynch.
The family has set up a website honoring Jim and offering photos and an obituary. He got his bachelor’s degree in Aeronautics at MIT, following it with a master’s degree in mechanical engineering at Caltech, and a PhD in aeronautics and physics at Stanford University. He was involved with development activities for the Delta launch vehicle while obtaining his bachelor’s degree by working at NASA Goddard Space Flight Center in the summers and then at McDonnell-Douglas after finishing his master’s degree. He joined Lockheed and Hughes aircraft for a time before finally ending up at the Lawrence Livermore National Laboratory working on laser physics until he retired.
Sail in Flight
So let’s look at Jim’s paper on sails, a subject he continued to work on for the next two decades. Although Robert Forward came up with sail ideas that pushed as high as 30 percent of the speed of light (and in the case of Starwisp, even higher), Jim and his co-author Richard London chose 0.1 c for cruise velocity in their paper, which provides technical challenges aplenty but at least diminishes the enormous energy costs of still faster missions, and certainly mitigates the problem of damage from dust and gas along the way. Depending on the methods used, the sail as analyzed in this paper may take a tenth of a light year to get up to cruise velocity. It’s worth mentioning that the sail does not have to remain deployed during cruise itself, but deceleration at the target star, depending on the methods used, may demand redeployment. Breakthrough Starshot envisions stowing the sail in cruise after its sudden acceleration to 20 percent of c.
Early and London use beryllium sails as their reference point, these being the best characterized design at this stage of sail study, and assume a sail 20 nm thick. In terms of the interstellar medium the sail will encounter, the authors say this:
Local interstellar dust properties can be estimated from dust impact rates on spacecraft in the outer solar system and by dust interaction with starlight. The mean particle masses seen by the Galileo and Ulysses spacecraft were 2×10-12 and 1×10-12g, respectively. A 10-12g dust grain has a diameter of approximately 1 µm. The median grain size is smaller because the mean is dominated by larger grains. The Ulysses saw a mass density of 7.5×10-27g cm-3. A sail accelerating over a distance of 0.1 light years would encounter 700 dust grains/cm2 at this density. The surface of any vehicle that traveled 10 light years would encounter 700 dust grains/mm2. If a significant fraction of the particle energy is deposited in the impacted surface in either case, the result would be catastrophic.
The question then becomes, just how much of the particle’s energy will be deposited on the sail? The unknowns are all too obvious, but the paper adds that neither of the Voyagers saw dust grains larger than 1 ?m at distances beyond 50 AU, while a 1999 study on interstellar dust grain distributions found a flat distribution from 10-14 to 10-12 g with some grains as large as 10-11 g. Noting that a 10-12 dust grain has a diameter of about 1-?m, the authors use a 1-?m diameter grain for their impact calculations.
The results are intriguing because they show little damage to the sail. Catastrophe averted:
At the high velocities of interstellar travel, dust grains and atoms of interstellar gas will pass through thin foils with very little loss of energy. There will be negligible damage from collisions between the nuclei of atoms. In the case of dust particles, most of the damage will be due to heating of the electrons in the thin foil. Even this damage will be limited to an area approximately the size of the dust particle due to the extremely fast, one-dimensional ambipolar diffusion explosion of the heated section of the foil. The total fraction of the sail surface damaged by dust collisions will be negligible.
The torn and battered lightsail in its dock, as seen in my remembered illustration, may then be unlikely, depending on cruise speed and, of course, on the local medium it passes through. Sail materials also turn out to offer excellent shielding for the critical payload behind the sail:
Interstellar vehicles require protection from impacts by dust and interstellar gas on the deep structures of the vehicle. The deployment of a thin foil in front of the vehicle provides a low mass, effective system for conversion of dust grains or neutral gas atoms into free electrons and ions. These charged particles can then be easily deflected away from the vehicle with electrostatic shields.
And because the topic has come up in a number of past discussions here, let me add this bit about interstellar gas and its effects on the lightsail:
The mass density of interstellar gas is approximately one hundred times that of interstellar dust particles though this ratio varies significantly in different regions of space. The impact of this gas on interstellar vehicles can cause local material damage and generate more penetrating photon radiation. If this gas is ionized, it can be easily deflected before it strikes the vehicle’s surface. Any neutral atom striking even the thin foil discussed in this paper will pass through the foil and emerge as an ion and free electron. Electrostatic or magnetic shields can then deflect these charged particles away from the vehicle.
Consequences for Sail Design
All of these findings have a bearing on the kind of sail we use. The thin beryllium sail appears effective as a shield for the payload, with a high melting point and, the authors conclude, the ability to be increased in thickness if necessary without increasing the area damaged by dust grains. Ultra-thin foils of tantalum or niobium offer higher temperature possibilities, allowing us to increase the laser power applied to the sail and thus the acceleration. But Early and London believe that the higher atomic mass of these sails would make them more susceptible to damage. Even so, “…the level of damage to thin laser lightsails appears to be quite small; therefore the design of these sails should not be strongly influenced by dust collision concerns.”
Dielectric sails would be more problematic, suffering more damage from heated dust grains because of their greater thickness, and the authors argue that these sail materials need to be subjected to a more complete analysis of the blast wave dynamics they will experience. All in all, though, velocities of 0.1 c yield little damage to a thin beryllium sail, and thin shields of similar materials can ionize dust as well as neutral interstellar gas atoms, allowing the ions to be deflected and the interstellar vehicle protected.
These are encouraging results, but the size of the problem is daunting, and given the apparent cost of the classically conceived interstellar probe, the prospect of impact damage calls for continued analysis of the medium through which the probe would pass. This is one of the advantages of sending not one large craft but a multitude of smaller ‘chipsat’ style vehicles in the Breakthrough Starshot model. Send enough of these and you can afford to lose a certain percentage along the way. I can only wish I could sit down with Jim Early again to kick around chipsat concepts, but what a fine memorial to know that your paper continues to influence evolving interstellar ideas.
The paper is Early, J.T., and London, R.A., “Dust Grain Damage to Interstellar Laser-Pushed Lightsail,” Journal of Spacecraft and Rockets, July-Aug. 2000, Vol. 37, No. 4, pp. 526-531.
With landers on places like Enceladus conceivable in the not distant future, how we might recognize extraterrestrial life if and when we run into it is no small matter. But maybe we can draw conclusions by addressing the complexity of an object, calculating what it would take to produce it. Don Wilkins considers this approach in today’s essay as he lays out the background of Assembly Theory. A retired aerospace engineer with thirty-five years experience in designing, developing, testing, manufacturing and deploying avionics, Don tells me he has been an avid supporter of space flight and exploration all the way back to the days of Project Mercury. Based in St. Louis, where he is an adjunct instructor of electronics at Washington University, Don holds twelve patents and is involved with the university’s efforts at increasing participation in science, technology, engineering, and math. Have a look at how we might deploy AT methods not only in our system but around other stars.
by Don Wilkins
A continuing concern within the astrobiology community is the possibility alien life is detected, then misclassified as built from non-organic processes. Likely harbors for extraterrestrial life — if such life exists — might be so alien, employing chemistries radically different from those used by terrestrial life, as to be unrecognizable by present technologies. No definitive signature unambiguously distinguishes life from inorganic processes.
Two contentious results from the search for life on Mars are examples of this uncertainty. Lack of knowledge of the environments producing the results prevented elimination of abiotic origins for the molecules under evaluation. The Viking Lander’s metabolic experiments provide debatable results as the properties of Martian soil were unknown. An exciting announcement of life detection in the ALH 84001 meteorite is challenged as the ambiguous criteria to make the decision are not quantitative.
Terrestrial living systems employ processes such as photosynthesis, whose outputs are potential biosignatures. While these signals are relatively simple to identify on Earth, the unknown context of these signals in alien environments makes distinguishing between organic and inorganic origins difficult if not impossible.
The central problem arises in an apparent disconnect between physics and biology. In accounting for life, traditional physics provides the laws of nature, and assumes specific outcomes are the result of specific initial conditions. Life, in the standard interpretation, is encoded in the initial period immediately after the Big Bang. Life is, in other words, an emergent property of the Universe.
Assembly theory (AT) offers a possible solution to the ambiguity. AT posits a numerical value, based on the complexity of a molecule, that can be assigned to a chemical, the Assembly Index (AI), Figure 1. This parameter measures the histories of an object, essentially the complexity of the processes which formed the molecule. Assembly pathways are sequences of joining operations, from basic building blocks to final product. In these sequences, sub-units generated within the sequence combine with other basic or compound sub-units later in the sequence, to recursively generate larger structures.
The theory purports to objectively measure an object’s complexity by considering how it was made. The assembly index (AI) is produced by calculating the minimum number of steps needed to make the object from its ingredients. The results showed, for relatively small molecules (mass?<?~250 Daltons), AI is approximately proportional to molecular weight. The relationship with molecular weight is not valid for large molecules greater than 250 Daltons. Note: One Dalton or atomic mass unit is a equal to one twelfth of the mass of a free carbon-12 atom at rest.
Figure 1. A Comparison of Assembly Indices for Biological and Abiotic Molecules.
Analyzing a molecule begins with basic building blocks, a shared set of objects, Figure 2. AI measures the smallest number of joining operations required to create the object. The assembly process is a random walk on weighted trees where the number of outgoing edges (leaves) grows as a function of the depth of the tree. A probability estimate an object forms by chance requires the production of several million trees and calculating the likelihood of the most likely path through the “forest”. Probability is related to the number of joining operations required or the path length traversed to produce the molecule. As an example, the probability of Taxol forming ranges between 1:1035 to 1:1060 with a path length of 30. In Figure 2, alpha biasing controls how quickly the number of joining operations grows with the depth of the tree.

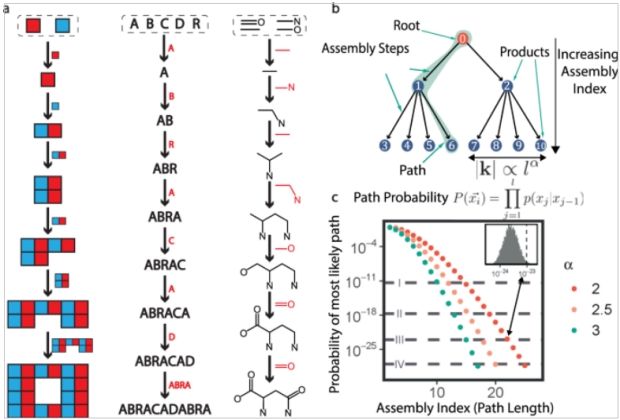

Figure 2. Calculating Complexity
AT does not require extremely fine-tuned initial conditions demanded in the physics-based origins of life. Information to build specific objects accumulates over time. A highly improbable fine-tuned Big Bang is no longer needed. AT takes advantage of concepts borrowed from graph (networks of interlinked nodes) theory.  According to Sara Walker of Arizona State University and a lead AT researcher, information “is in the path, not the initial conditions.”
To explain why some objects appear but others do not, AT posits four distinct classifications, Figure 3. All possible basic building block variations are allowed in the Assembly Universe. Physics, temperature or catalysis are examples, constraining the combinations, eliminating constructs which are not physical in the Assembly Possible. Only objects that can be assembled comprise the Assembly Contingent level. Observable objects are grouped in the Assembly Observed.

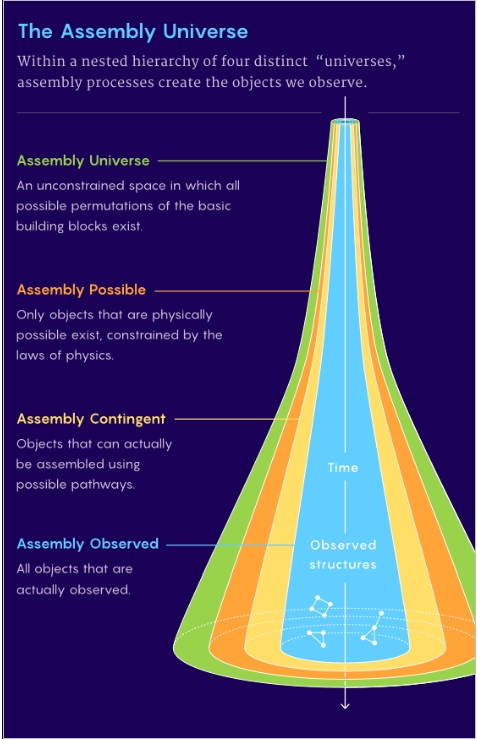

Figure 3. The four “universes” of Assembly Theory
Chiara Marletto, a theoretical physicist at the University of Oxford, with David Deutsch, a physicist also at Oxford, are developing a theory resembling AT, the constructor theory (CT). Mimicking the thermodynamics Carnot cycle, CT uses machines or constructors operating in a cyclic fashion, starting at a original state, processing through a pattern until the process returns to the original state to explain a non-probabilistic Universe.
A team headed by Lee Cronin of the University of Glasgow and Sara Walker proposes AT as a tool to distinguish between molecules produced by terrestrial or extraterrestrial life and those built by abiotic processes.  AT analysis is susceptible to false negatives but current work produces no false positives. After completing a series of demonstrations, the researchers believe an AT life detection experiment deployable to extraterrestrial locations is possible.
Researchers believe AI estimates can be made using mass or infrared spectrometry. [5-6] While mass spectrometry requires physical access to samples, Cronin and colleagues showed a combination of AT and infrared spectrometry sensors similar to those on the James Webb Space Telescope could analyze the chemical environment of an exoplanet, possibly detecting alien life.
 Philip Ball, A New Idea for How to Assemble Life, Quanta, 4 May 2023,
 Abhishek Sharma, Dániel Czégel, Michael Lachmann, Christopher P. Kempes, Sara I. Walker, Leroy Cronin, “Assembly Theory Explains and Quantifies the Emergence of Selection and Evolution,”
 Stuart M. Marshall, Douglas G. Moore, Alastair R. G. Murray, Sara I. Walker, and Leroy Cronin, Formalising the Pathways to Life Using Assembly Spaces, Entropy 2022, 24(7), 884, 27 June 2022, https://doi.org/10.3390/e24070884
 Yu Liu, Cole Mathis, Micha? Dariusz Bajczyk, Stuart M. Marshall, Liam Wilbraham, Leroy Cronin, “Ring and mapping chemical space with molecular assembly trees,” Science Advances, Vol. 7, No. 39
 Stuart M. Marshall, Cole Mathis, Emma Carrick, Graham Keenan, Geoffrey J. T. Cooper, Heather Graham, Matthew Craven, Piotr S. Gromski, Douglas G. Moore, Sara I. Walker, Leroy Cronin, “Identifying molecules as biosignatures with assembly theory and mass spectrometry,” Nature Communications volume 12, article number: 3033 (2021)
 Michael Jirasek, Abhishek Sharma, Jessica R. Bame, Nicola Bell1, Stuart M. Marshall,Cole Mathis, Alasdair Macleod, Geoffrey J. T. Cooper!, Marcel Swart, Rosa Mollfulleda, Leroy Cronin, “Multimodal Techniques for Detecting Alien Life using Assembly Theory and Spectroscopy,” https://arxiv.org/ftp/arxiv/papers/2302/2302.13753.pdf
